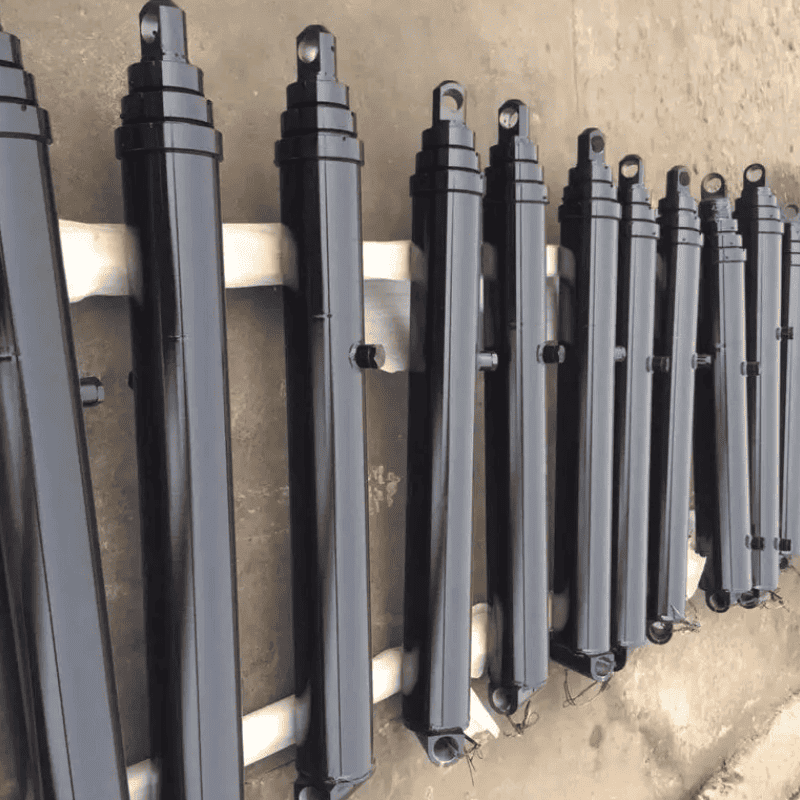

Hydraulic Cylinder 53-892-84 Type Singulus agens Telescopic Plaga 084.00 Clausa 41.12 Rod Pin 1.63 Rod Latitudo 1.5 Basis Pin 2 LMSD 5 Gradus 3 Plaga 84 Extensus 170
Hydraulic Cylinder 53-892-84
Numero graduum 3
Maximum movens Scaena Diameter V pollices
Plaga Longitudo (A) 84.19 in (2138 mm)
Clausa Longitudo (B) 41.12 in (1044 mm)
Longitudo extensa (C) 125.31 in (3183 mm)
Rod Mount Width (D) 1.5 in (38 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Base Mons Latitudo (G) 7 in (178 mm)
Basis Mons Pin Hole (J) 2.06 in (52 mm)
Portus (L) 3/4" NPTF
Olei metrete (Retracted) 1.7
Olei metrete (Extended) 6
