Hydraulic Cylinder 63-2-108 Type Single Agens Telescopic Plaga 108 Clausa 49 Rod Pin 2 Rod Latitudo 2 Base Pin 2 LMSD 6 Gradus 3 Extensus 256

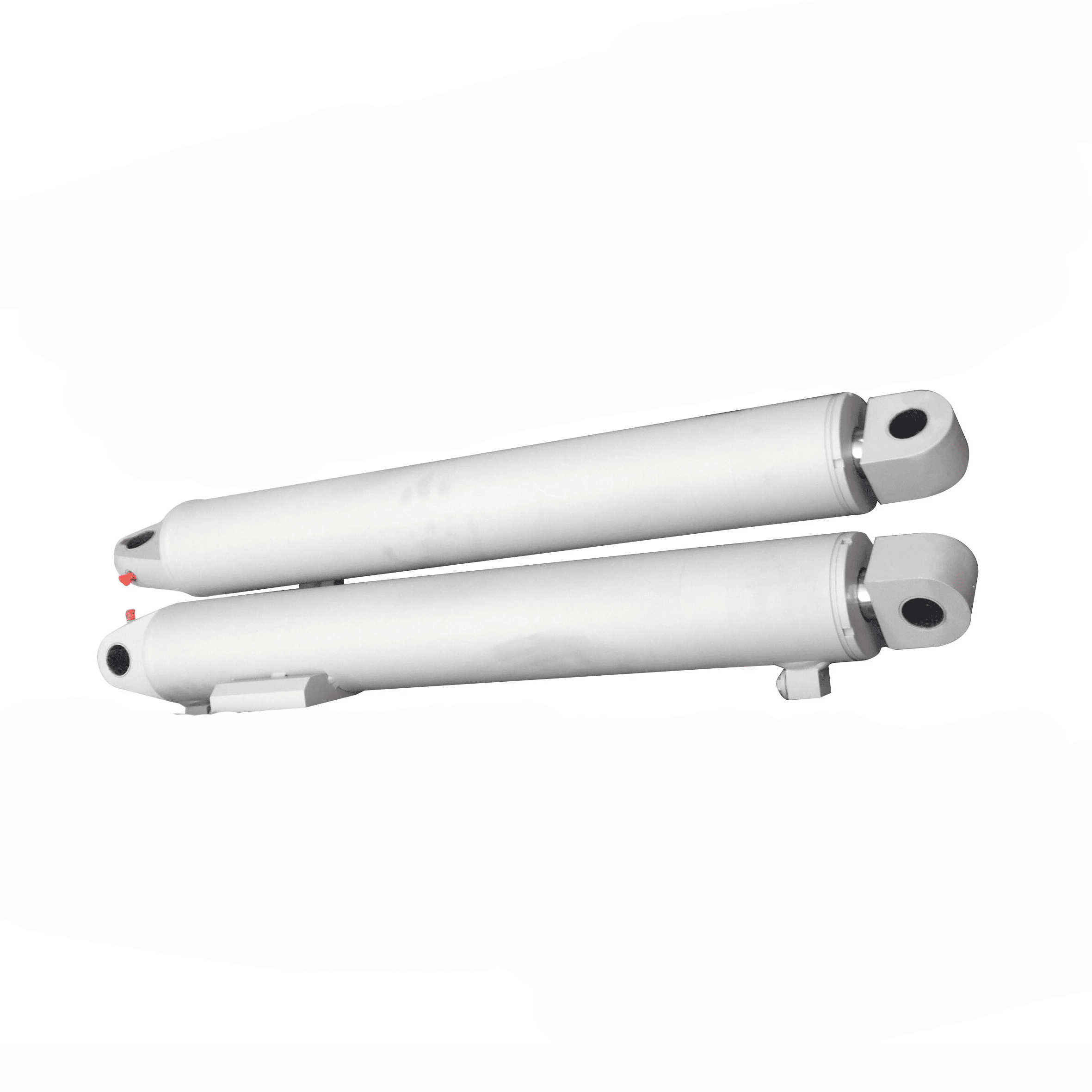

Hydraulic Cylinder 63-2-108
Numero graduum 3
Maximum movens Scaena Diameter VI pollices
Longitudo plaga (A) 108.38 in (2753 mm)
Clausa Longitudo 49 in (1245 mm)
Longitudo (C) 157.38 in (3997 mm)
Rod Mount Width (D) 2 in (51 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Base Mons Latitudo (G) 7 in (178 mm)
Base Mount Pin Hole (J) 2.13 in (54 mm)
Portus (L) 1" NPTF
