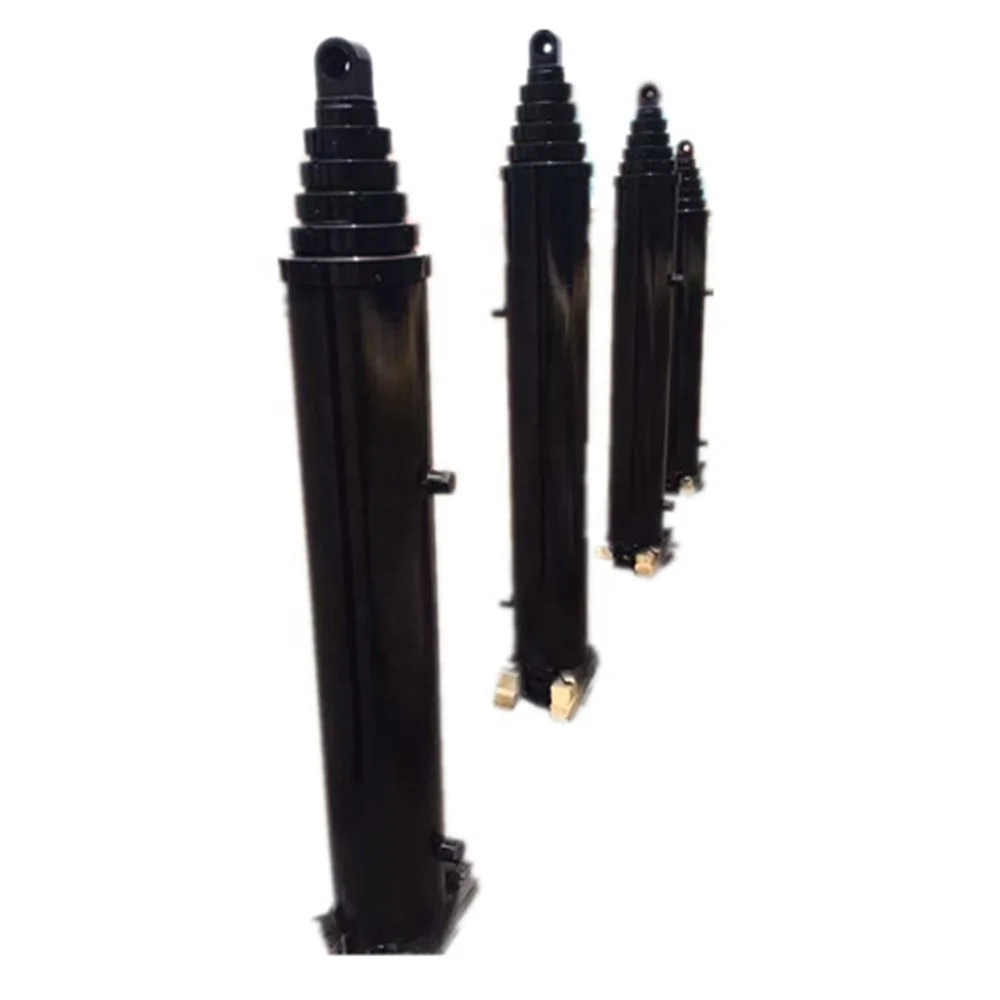

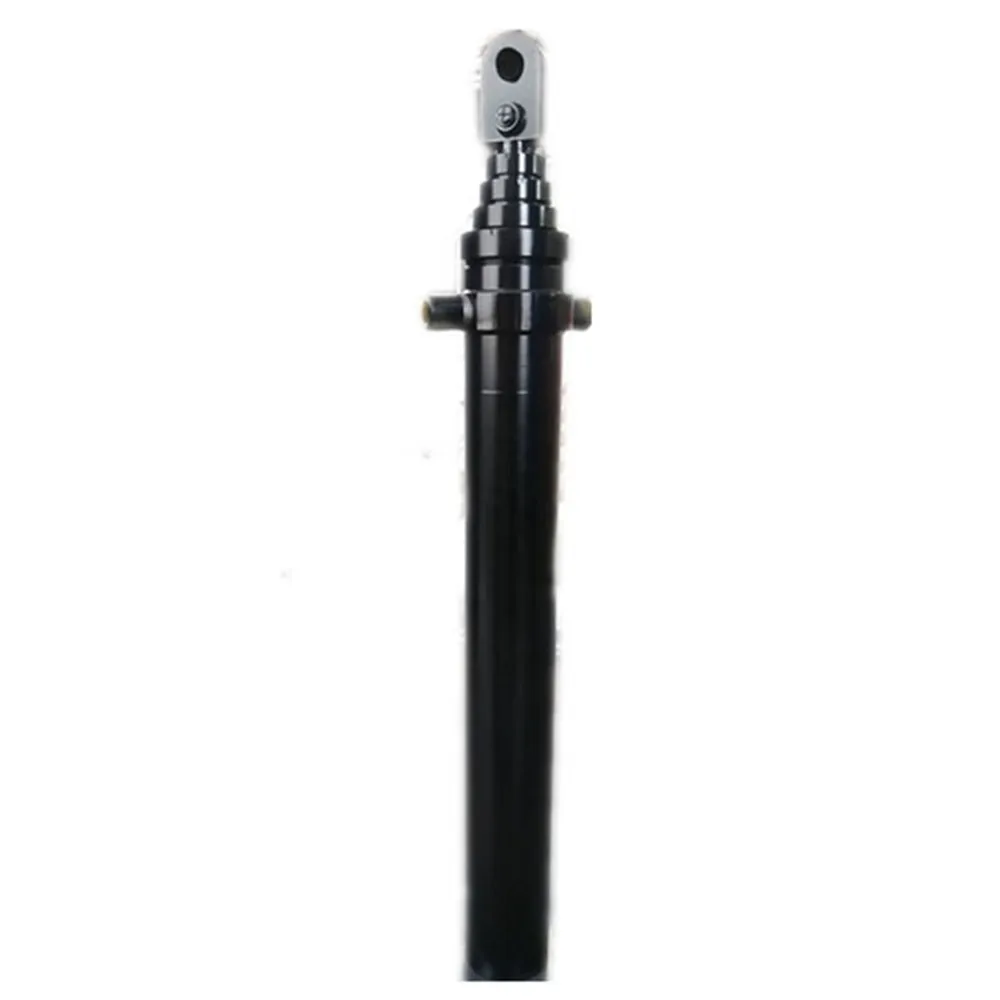

Hydraulic Cylinder 64-35-135 Type Single Agens Telescopic Plaga 134.88 Clausa 47.13 Rod Pin 1.5 Rod Latitudo 2.69 Base Pin 1.75 LMSD 6 Gradus 4 Plaga 134 Fundo 275
Longitudo extensa (C) 181.88 in (4620 mm)
Maximum movens Scaena Diameter VI pollices
Rod Mount Pin Hole (E) 1.56 in (40 mm)
Clausa Longitudo (B) 47.13 in (1197 mm)
Longitudo extensa (C) 181.88 in (4620 mm)
Rod Mount Width (D) 2.69 in (68 mm)
Rod Mount Pin Hole (E) 1.56 in (40 mm)
Basi Mons Latitudo (G) 8 in (203 mm)
Base Mount Pin Hole (J) 1.88 in (48 mm)
Portus (L) 1" NPTF
Olei metrete (Retracted) 2.5
Olei metrete (Extended) 9.7
