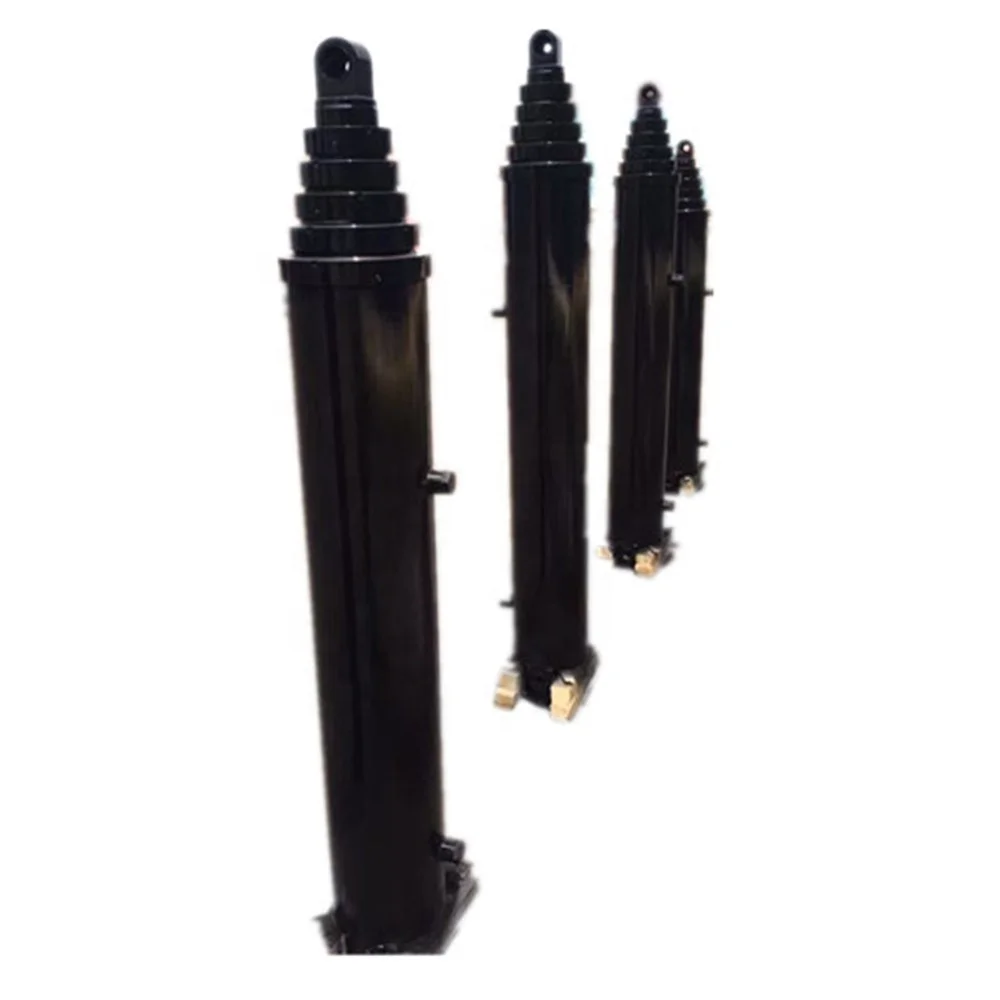

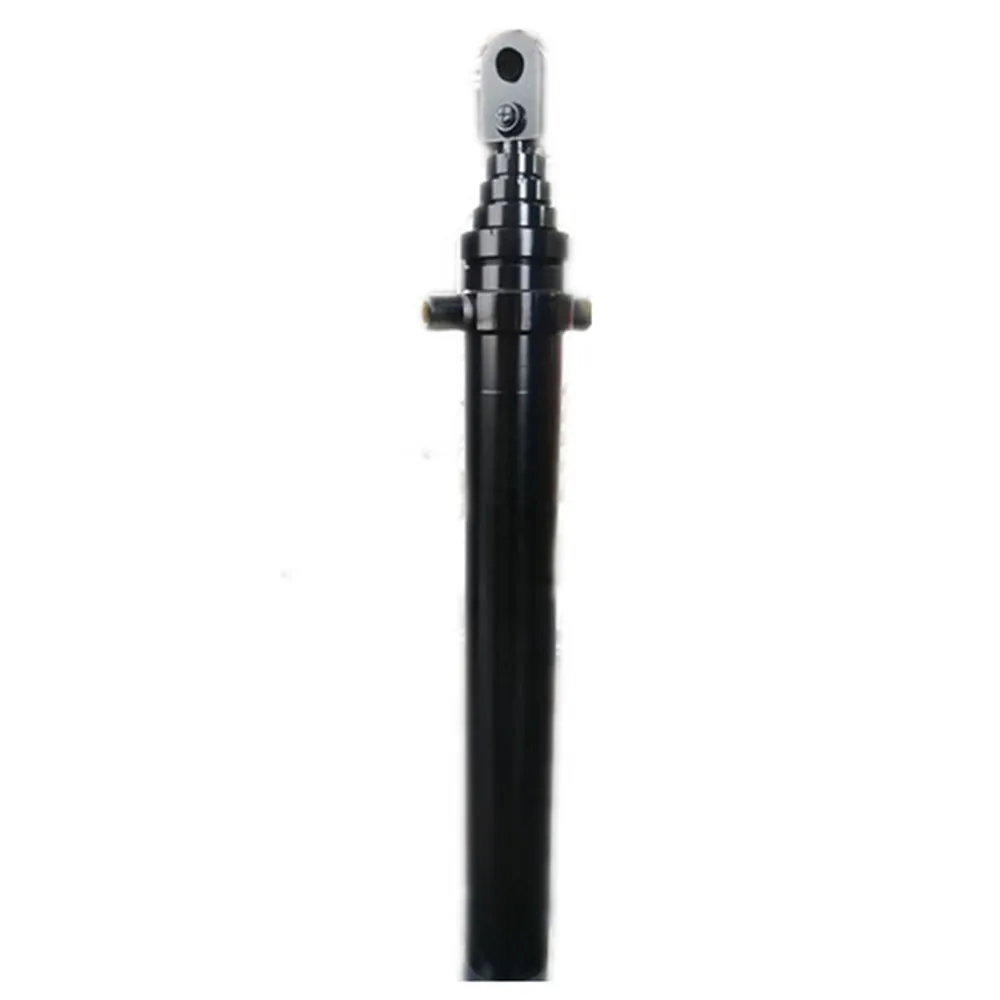

Hydraulic Cylinder 85-453-265 Type Single Agens Telescopic Plaga 263,25 Clausa 70.88 Rod Pin 2 Rod Latitudo 2 Base Pin 2 LMSD 8 Gradus 5 Plaga 263 Extensus 715
Hydraulic Cylinder 85-453-265
Numerus graduum 5
Maximum movens Scaena Diameter VIII pollices
Plaga Longitudo (A) 263.63 in (6696 mm)
Clausa Longitudo (B) 70.88 in (1800 mm)
Longitudo (C) 334.5 in (8496 mm)
Rod Mount Width (D) 2 in (51 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Basis Mons Latitudo (G) 9.5 in (241 mm)
Base Mount Pin Hole (J) 2.13 in (54 mm)
Portus (L) 1" NPTF
Olei metrete (Retracted) 5.6
Olei metrete (Extended) 33.9
